G542 Offset Fixed Over Fixed – Simulated Hung Window

Category
Aluminum Windows
Description

G542 Offset Fixed over Fixed window simulates the look of traditional hung windows, while meeting all modern performance and energy requirements.

Specs

Frame Depth

  • 4.25"

AAMA / FGIA Rating

  • AW 90

Test Size

  • 60 x 99

Typical Wall Thickness

  • 0.08

Air (CFM/SF)

  • <0.1

Water(PSF)

  • 15

Thermal Break Design

  • Polyamide Strut

Standard Glass Thickness

  • 1"

Glazing System

  • Dry Glazed

OITC / STC

  • 25-31

|

  • 33-40

U-Value

  • 0.14

SHGC

  • 0.22

Additional information coming soon.

  • AAMA 2604 Warranty

  • AAMA 2605 Warranty

  • Glass Warranty

  • Sample Warranty

  • Terms and Conditions

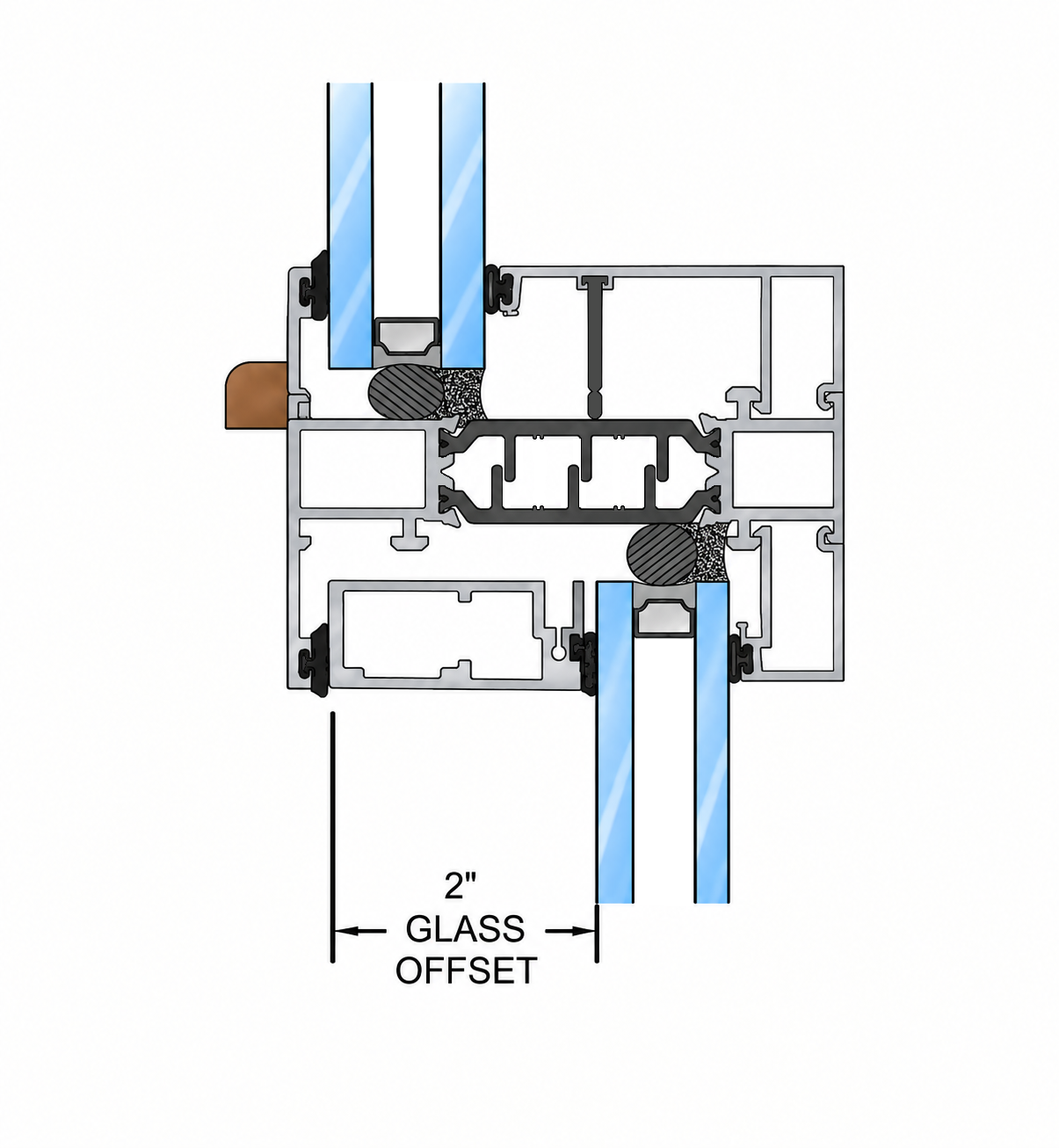

  • G542 Offset Frame Image
Add to Project
Download Links
  • Detail PDF – Standard Offset
  • Detail PDF – Standard Offset TGU
  • CAD Detail
  • Optional Frames Large 2″ Offset
  • Optional Frames Large Offset
  • Optional Frames Large Offset TGU
  • Optional Frames Bevel Putty Offset Ext & Int
  • Optional Frames Bevel Putty Offset Ext
  • Optional Frames Bevel Putty Offset Ext TGU
  • Optional Frames Flat Putty Offset Ext & Int
  • Optional Frames Flat Putty Offset Ext
  • Optional Frames Flat Putty Offset Ext TGU
  • Tech Sheet
  • Specifications
  • OMC Manual

Additional information coming soon.
