G621 Offset Fixed Over Project In – Simulated Hung Window

Category
Aluminum Windows
Description

G621 Offset Fixed over Project In window simulates the look of traditional hung windows, while meeting all modern performance and energy requirements.

Specs

Frame Depth

  • 3.25"

AAMA / FGIA Rating

  • AW 50

Test Size

  • 60 x 99

Typical Wall Thickness

  • 0.08

Air (CFM/SF)

  • <0.1

Water(PSF)

  • 15

Thermal Break Design

  • Polyamide Strut

Standard Glass Thickness

  • 1"

Glazing System

  • Dry Glazed

OITC / STC

  • 26-34

|

  • 33-40

U-Value

  • 0.34

SHGC

  • 0.23

Additional information coming soon.

  • AAMA 2604 Warranty

  • AAMA 2605 Warranty

  • Glass Warranty

  • Sample Warranty

  • Terms and Conditions

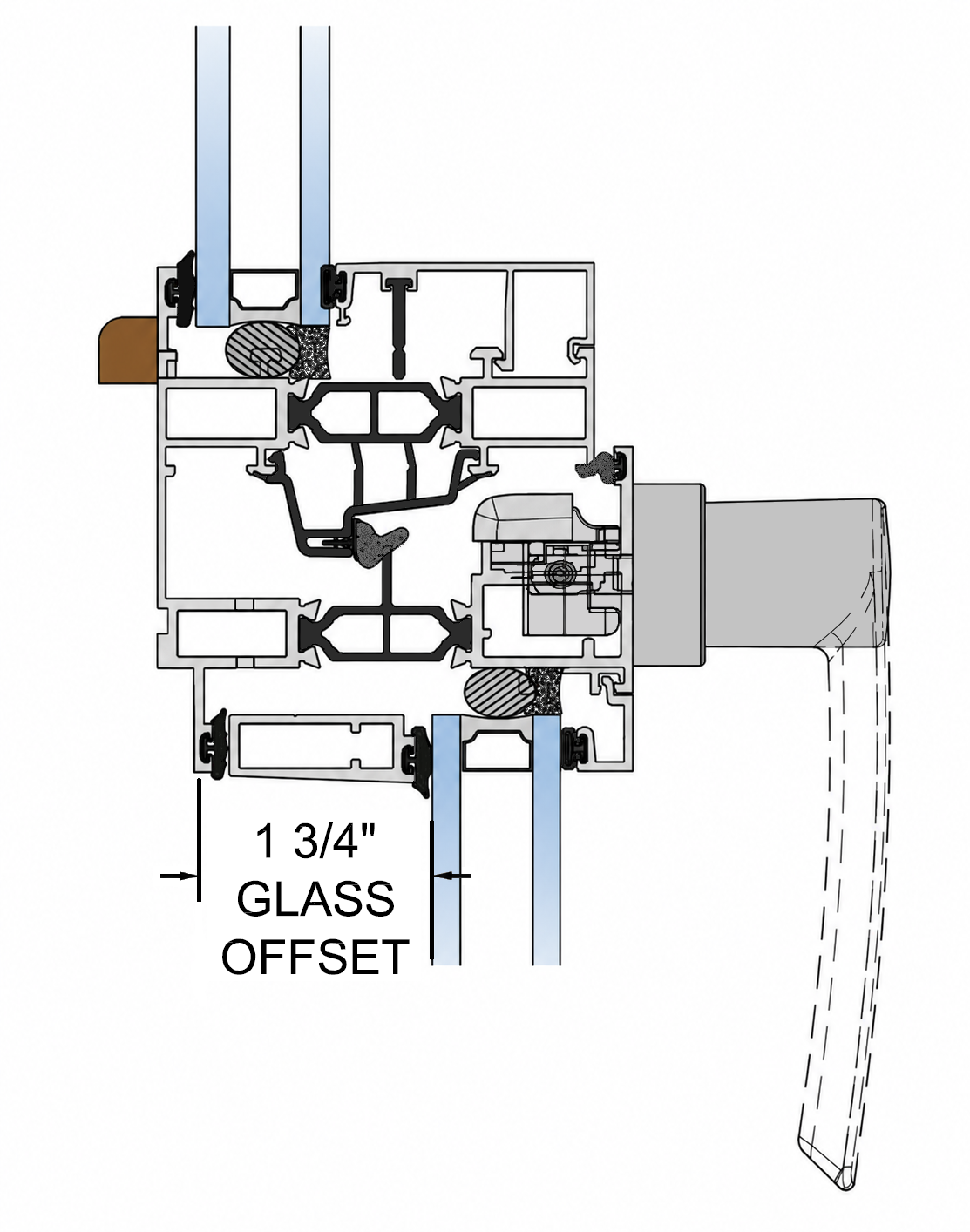

  • G621 Offset Frame Image
