G642 Offset Fixed Over Fixed – Simulated Hung Window

Category
Aluminum Windows
Description

G642 Offset Fixed over Fixed window simulates the look of traditional hung windows, while meeting all modern performance and energy requirements.

Specs

Frame Depth

  • 3.25"

AAMA / FGIA Rating

  • AW 100

Test Size

  • 48 x 72

Typical Wall Thickness

  • 0.08

Air (CFM/SF)

  • <0.1

Water(PSF)

  • 15

Thermal Break Design

  • Polyamide Strut

Standard Glass Thickness

  • 1"

Glazing System

  • Dry Glazed

OITC / STC

  • 25-31

|

  • 32-40

U-Value

  • 0.29

SHGC

  • 0.25

Additional information coming soon.

  • AAMA 2604 Warranty

  • AAMA 2605 Warranty

  • Glass Warranty

  • Sample Warranty

  • Terms and Conditions

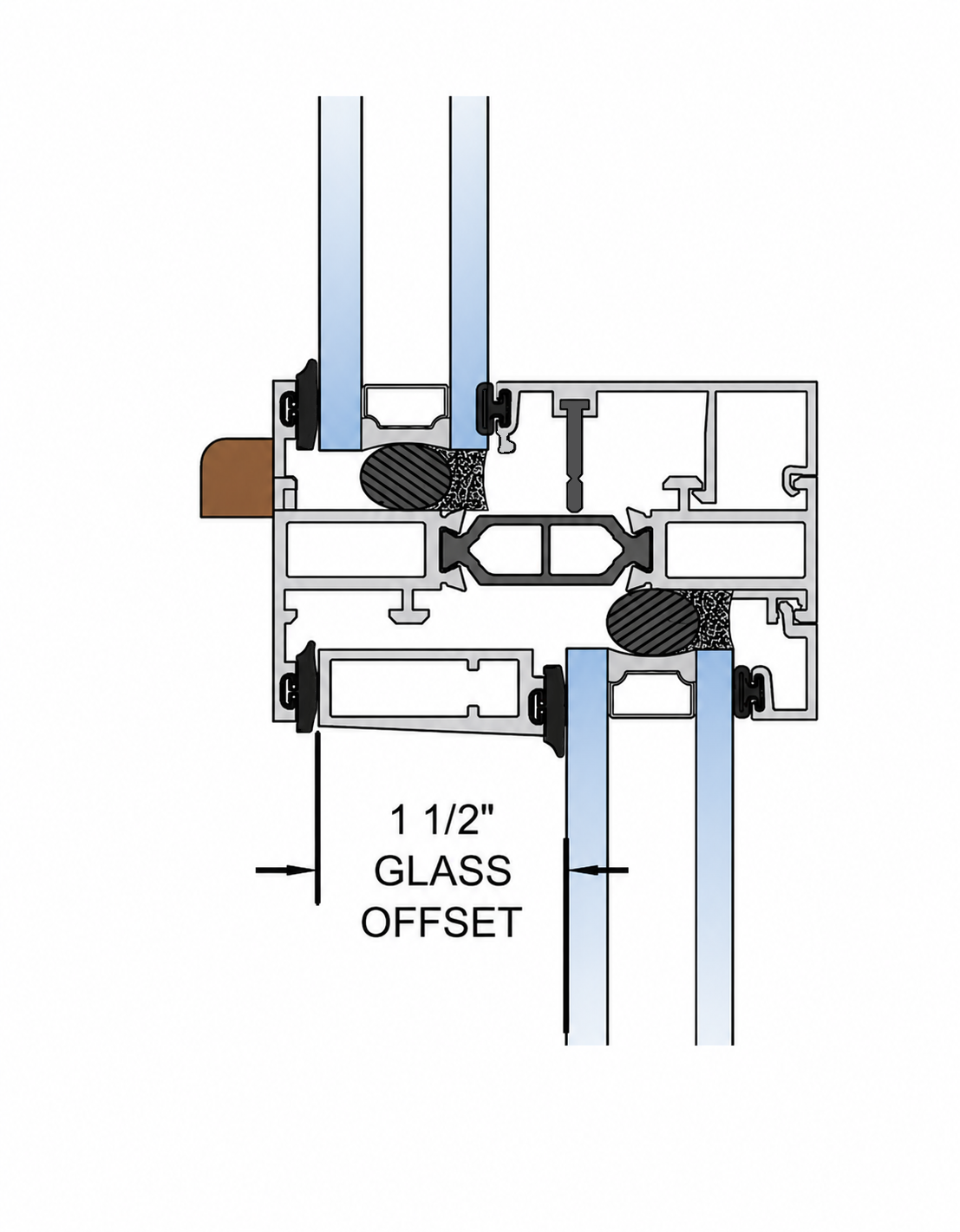

  • G642 Offset Frame Image
