GTD8 Inswing Terrace Door

Category
Aluminum Doors
Description

Additional information coming soon.

Specs

Frame Depth

  • 3"

AAMA / FGIA Rating

  • AW 50

Test Size

  • 48 x 96

Typical Wall Thickness

  • 0.08

Air (CFM/SF)

  • <0.1

Water(PSF)

  • 12

Thermal Break Design

  • Polyamide Strut

Standard Glass Thickness

  • 1"

Glazing System

  • Dry Glazed

OITC / STC

  • 25-31

|

  • 35-39

U-Value

  • 0.35

SHGC

Additional information coming soon.

  • AAMA 2604 Warranty

  • AAMA 2605 Warranty

  • Glass Warranty

  • Sample Warranty

  • Terms and Conditions

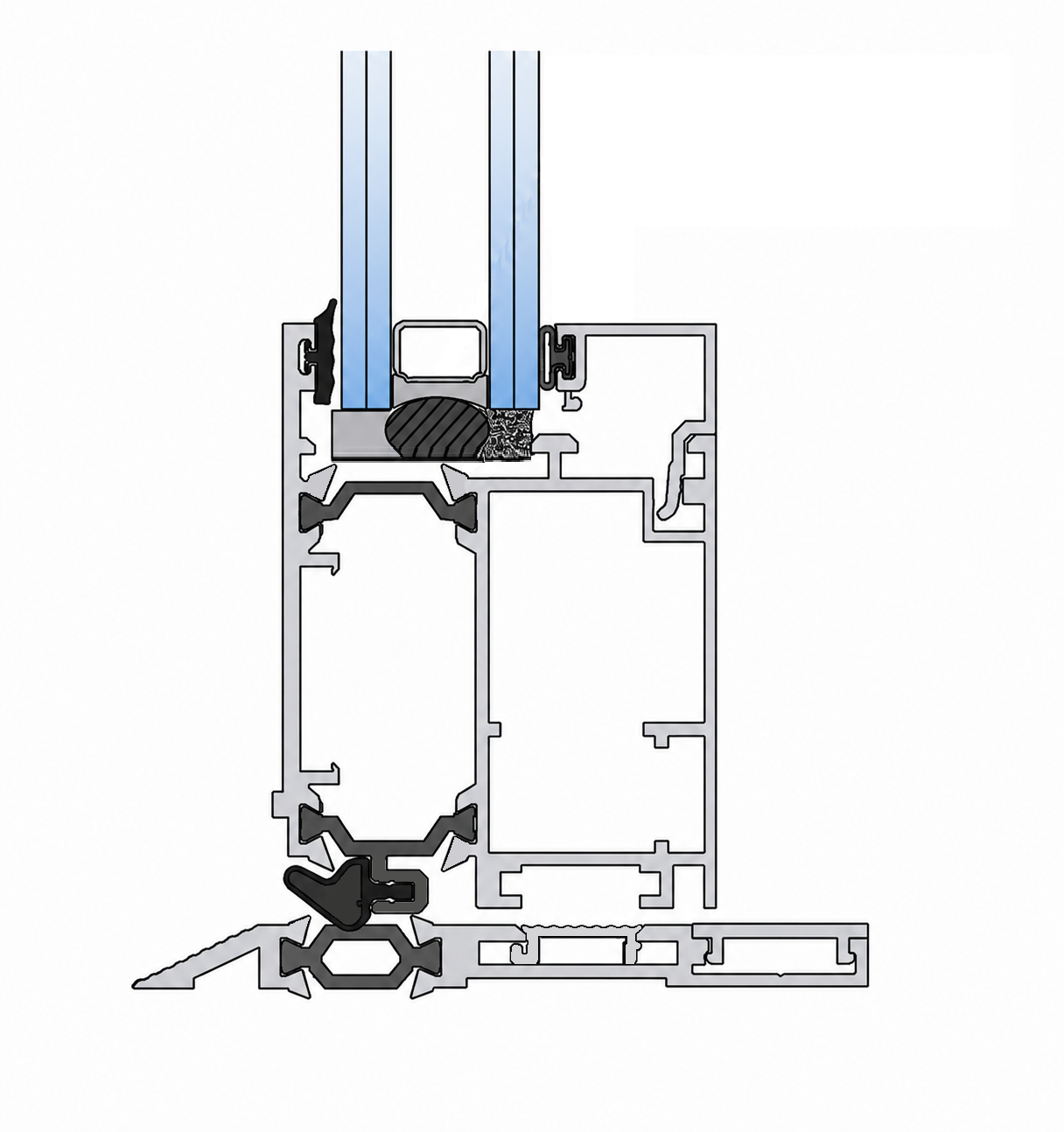

  • GTD8 Frame Image
Add to Project
Download Links
  • CAD Detail
  • Detail PDF
  • Optional Frames
  • OMC Manual
  • Tech Sheet

Additional information coming soon.
