FR42 Fixed Over Fixed

Category
Fiber Resin Windows
Description

FR42 is a Hybrid Fiber Resin fixed over fixed window most commonly used in low-mid rise buildings.

Specs

Frame Depth

  • 3.125"

AAMA / FGIA Rating

  • AW 50
  • /
  • CW 70

Test Size

  • 40 x 83
  • /
  • 60 x 99

Typical Wall Thickness

  • 0.106

Air (CFM/SF)

  • <0.1

Water(PSF)

  • 12

Thermal Break Design

  • Glass Fiber Reinforced uPVC

Standard Glass Thickness

  • 1"

Glazing System

  • Dry Glazed

OITC / STC

  • 31-33

|

  • 33-40

U-Value

  • 0.14

SHGC

  • 0.21

Additional information coming soon.

  • AAMA 2604 Warranty

  • AAMA 2605 Warranty

  • Glass Warranty

  • Sample Warranty

  • Terms and Conditions

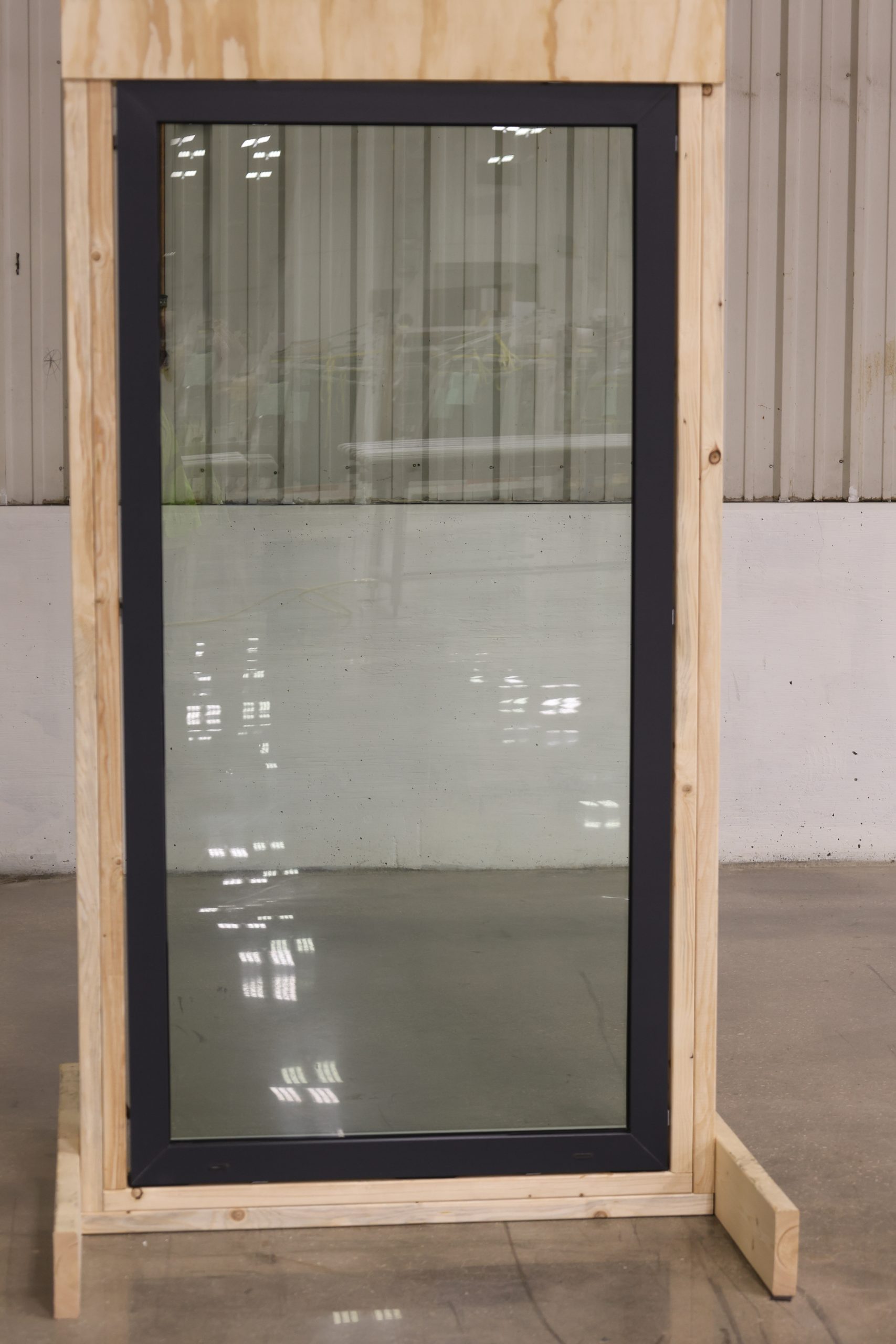

  • Fiber Resin Fixed Full Window Picture

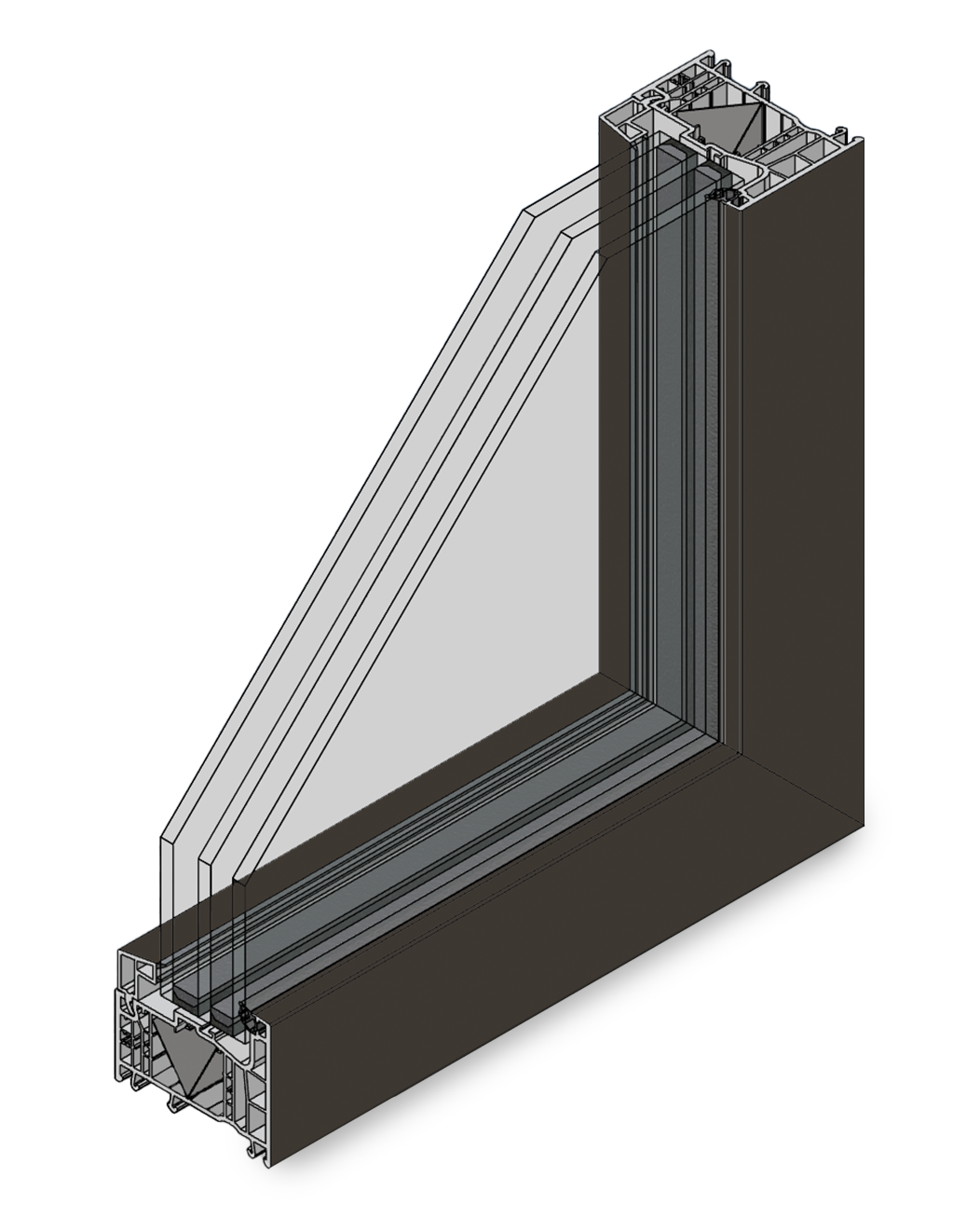

  • FR42 Frame Image
Add to Project
Download Links
  • Standard Details CAD
  • Standard Details PDF
  • Fixed Details CAD
  • Fixed Details PDF
  • Specifications
  • Brochure
  • Tech Sheet

Additional information coming soon.
