Description

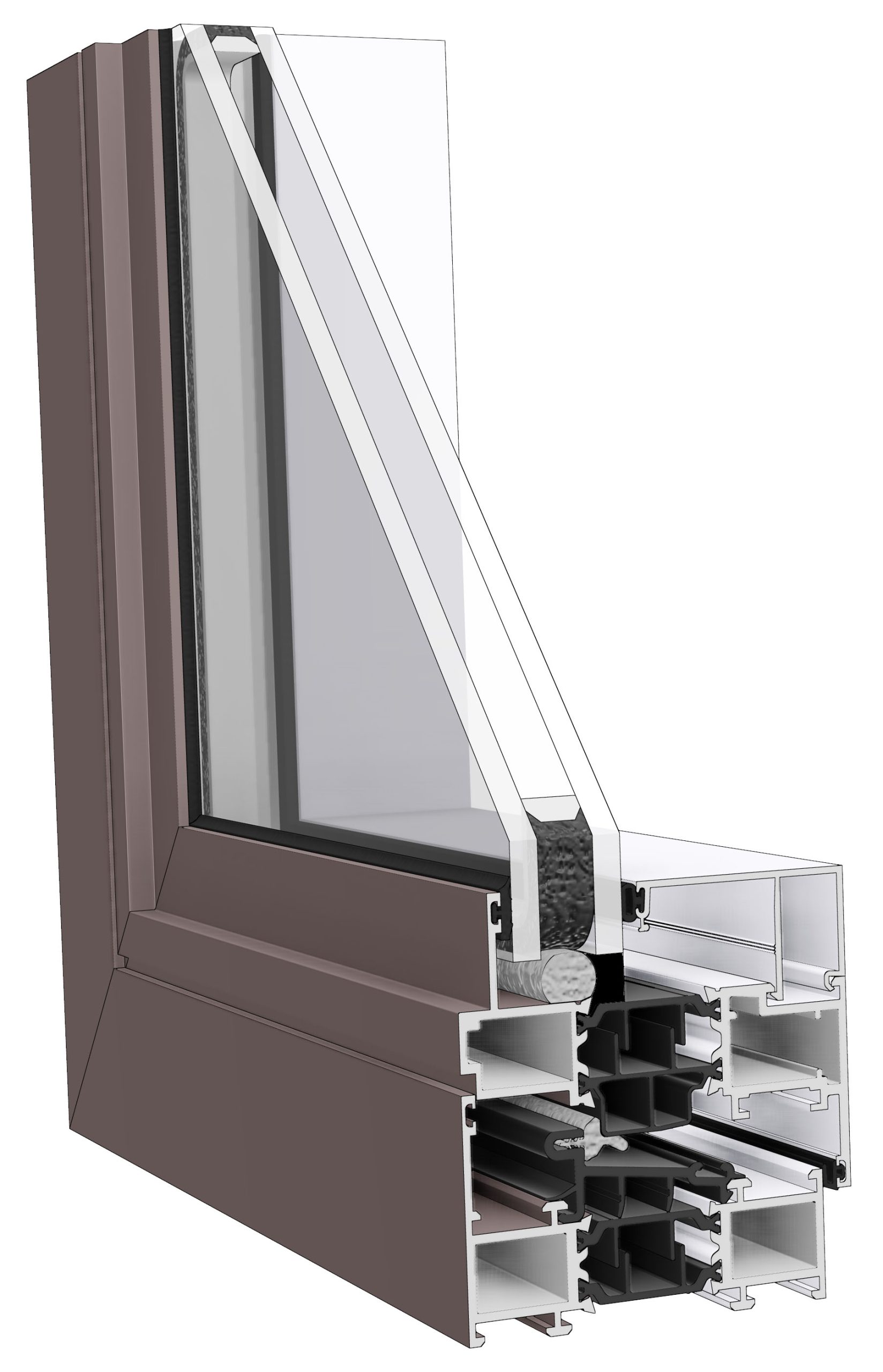

G211 is a project in hopper window used in mid-high rise buildings all over the nation to meet performance requirements.
Specs
Frame Depth
- 3.25"
AAMA / FGIA Rating
- AW 100
Test Size
- 60 x 36
Typical Wall Thickness
- 0.08
Air (CFM/SF)
- <0.1
Water(PSF)
- 15
Thermal Break Design
- Polyamide Strut
Standard Glass Thickness
- 1"
Glazing System
- Dry Glazed
OITC / STC
- 25-34
|
- 32-42
U-Value
- 0.33
SHGC
- 0.20
Additional information coming soon.
